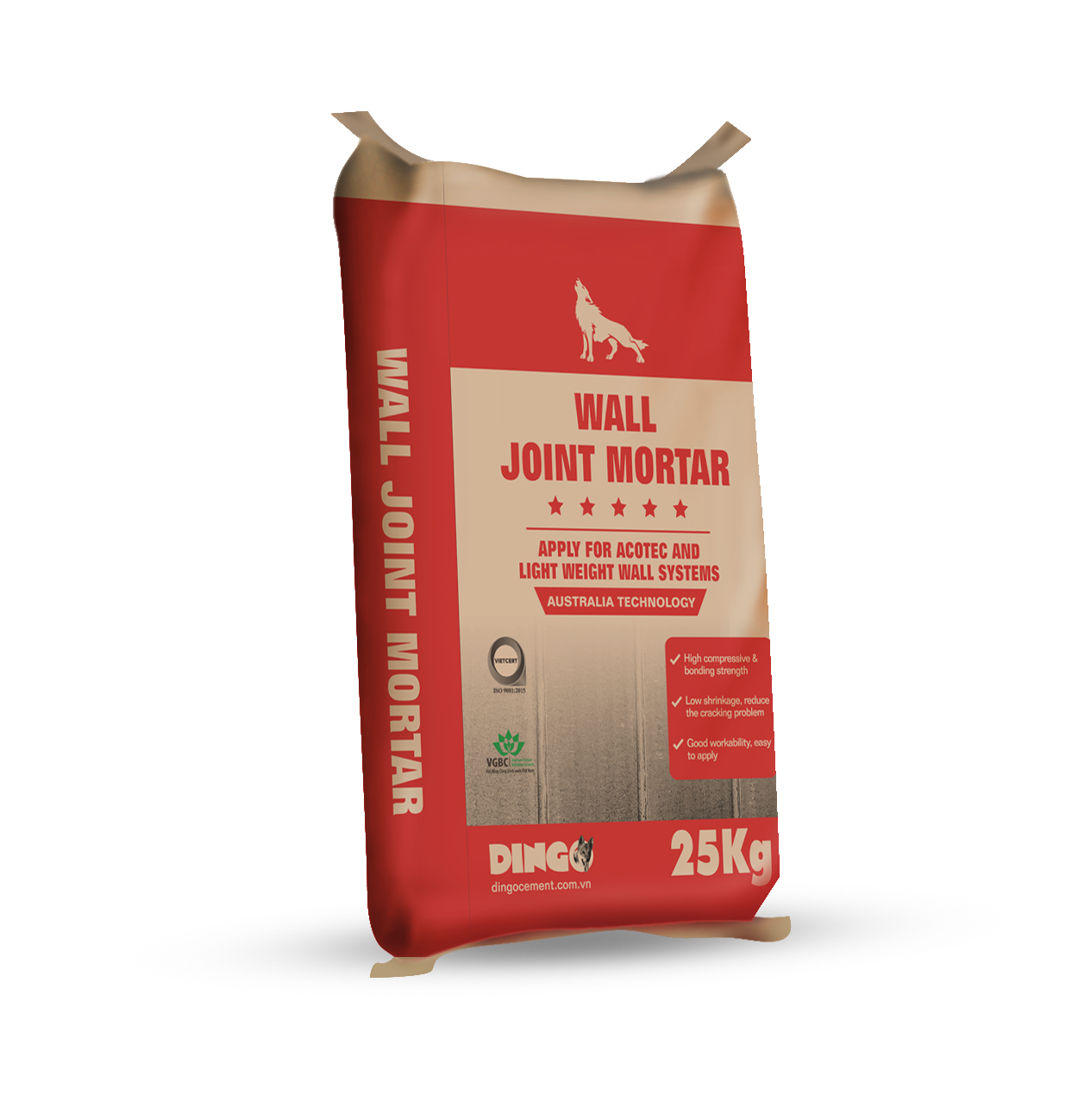

Dingo Wall Join Mortar

Adhesive mortar for light-weight wall system. It provides good adhesion, enhance strength on the light-weight wall panel. Low shrinkage, reduce the cracking problem at the joint area between sheets. Can be used for lling small holes and ssures. It designed for installation of EPS-Cement wall panel, light weight aggregate concrete wall panel, light weight concrete wall panel and etc.

This product is currently out of stock and unavailable.

SKU: N/A Categories: ,

Product Features

– Can be used for installation light-weight wall panel.
– Good adhesion, enhance strength on the light-weight wall panel.
– Low shrinkage, reduce the cracking problem.
Color : Grey powder

Application Instruction

Substrate preparation
– The substrate must be cleaned. Free from loose particle. Dirt, dust, any oils, other impurities or foreign materials must be removed.
– In case the installation of light weight aggregate concrete wall panel, light weight concrete wall panel and any high-water absorption material. Recommend to damp onto the side of panel before apply adhesive mortar, to reduce water absorption of material cause cracking problem.
– In case the EPS-Cement wall panel. Recommend to apply Thinner AAA onto the side of panel before apply adhesive mortar, to enhance the bonding properties.
Mixing ratio
Water : Wall Joint Mortar = 1 : 3.6-3.8 by volume or water 6.5-7.0 liter per Wall Joint Mortar 1 bag (25 kg).
Mixing method
Mix Wall Joint Mortar with water. Stir with slow speed electric mixer (< 150 rpm) till homogeneous.
Leave for cure 5 minutes and stir second time. Do not add more water / Wall Joint Mortar after allow curing.
Application Method
Adhesive for panel to structure
Damp the surface by water. Laying by place a layer of Wall Joint Mortar by trowel along the footing or ceiling. Apply 5-7 mm of Wall Joint Mortar by trowel onto the side end of the panel. Place the panel gently in line with the laying of Wall Joint Mortar. Remove excess by trowel.
Adhesive for panel and panel
Apply 5-7 mm of Wall Joint Mortar by trowel onto the side end of the panel. Place the panel gently onto the previous panel. Remove excess by trowel.
For gap lling
Filling the Wall Joint Mortar by trowel onto the joint or gap. Smooth the surface. Damp the surface by water to avoid micro crack.
Coverage
1 bag (25 kg) of Wall Joint Mortar can laying panel approximately 7-9 m2 condition of the substrate. The exact consumption must be determined by means of a sampling of the work.
Tools
Trowel
How To Clean The Tools
Clean tools after use with clean water.
Technical Data
Test Requirement Result
Consistency 175 – 195 mm Pass
Consistency retention ≥ 75 % Pass
Time of initial setting ≥ 240 mins Pass
Compressive strength after 28 days ≥ 10 MPa Pass
Adhesive strength after 28 days ≥ 1.0 MPa Pass
Maximum particle size of aggregates ≤ 1.25 mm Pass
Bucket life – ≥ 1.5 hr

Caution
– Recommend to use rubber gloves, dust protection masks, eye safety goggles and personal safety equipment.
– Apply in good ventilation area. Do not inhale products.
– In case of any spill on eyes, rinse immediately with clean water and seek medical advice.
– Keep away from children

Suggestion

– Damp the surface by water before apply adhesive mortar, to reduce water absorption of material cause cracking problem.
– Any sand, dust or small gravel on the substrate must be removed from the surface before apply.
– Do not use product on hot surface or contact to direct sunlight. Substrate needs to reduce the temperature by water before apply the products.
– Age of product is 1 year.

Packing

Net weight : 25 kg/bag
